Sounding Tube ~ Sounding Tube Expanded ~ Vented Sounding Tube

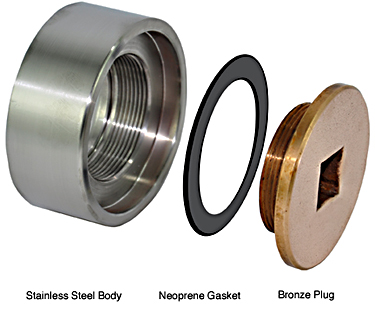

The sounding tube is furnished with stainless steel body for direct welding to steel decks.
Now Available in Aluminum (60-61 grade) with 04ss plug.
The latest design features special venting grooves to allow for the release of sounding pipe pressure without completely removing the plug.

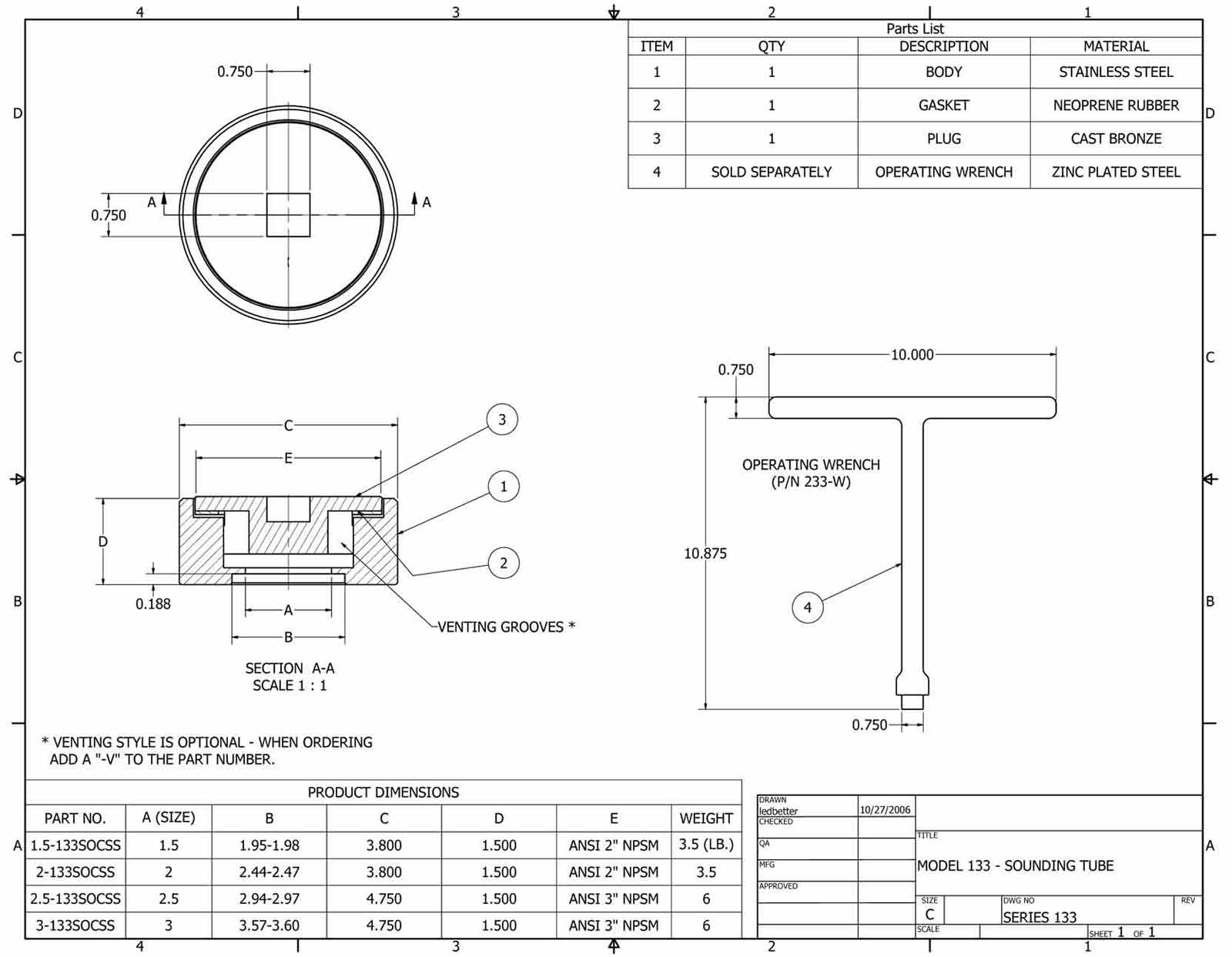

See Technical Drawings
| Product Dimensions |
Part # |
A (size) |
B |
C |
D |
E |
Weight |
| 1.5 MI133350CSS |
1.5 |
1.95-1.98 |
3.800 |
1.500 |
ANSI 2" NPSM |
3.5 lbs |
|
| 2 MI133350CSS |
2 |
2.44-2.47 |
3.800 |
1.500 |
ANSI 2" NPSM |
3.5 |
|
| 2.5 MI133350CSS |
2.5 |
2.94-2.97 |
4.750 |
1.500 |
ANSI 3" NPSM |
6 |
|
| 3 MI133350CSS |
3 |
3.57-3.60 |
4.750 |
1.500 |
ANSI 3" NPSM |
6 |
|
| Operating Wrench MI-233W |
|
|
