Rivet Nut Tools

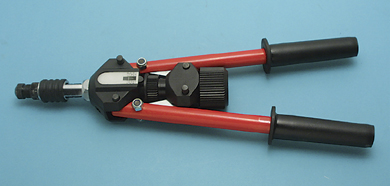

Rivet Nut installation tool ~ Made in the USA
Both unc and unf available. Tool includes one Mandrel of your choice.| ITEM | LENGTH | A | WT (lb) | Order |
|---|---|---|---|---|
S0380-0000 |
21" |
5/16" |
4.10 |

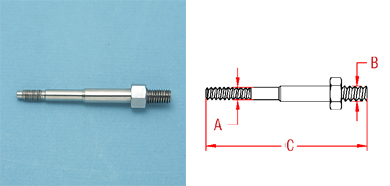

MANDREL PRECISION MACHINED UNC & UNF Threads
The Mandrels are to be used with the Rivet Nut Installation Tool. They are available in right hand and left hand, UNF and UNC thread to fit Rivet Nut Inserts.
| ITEM | A | B | C (lb) | WT (lb) | Order |
|---|---|---|---|---|---|
| UNC Right Hand S0380-U007 | 1/4" | 5/16" | 3.25 | 0.05 |
|
| S0380-U008 | 5/16" | 5/16" | 3.25 | 0.05 |
|
| UNC Left Hand S0380-UL07 | 1/4" | 5/16" | 3.25 | 0.05 |
|
| UNF Right Hand S0380-F007 | 1/4" | 5/16" | 3.25 | 0.05 |
|
| UNF Left Hand S0380-FL07 | 1/4" | 5/16" | 3.25 | 0.05 |
