Gal MI TS 8211 B
MI-ST-NL-5211-B - Workboard Faucet - Less Nozzle
10-1/2" (267mm) long X 2" (51mm) wide chrome plated escutcheon,
8" (203mm) centers ~ 1-1/2" (38mm) long shanks ~ 1/2" IPS thread
Spec Sheet
MI-ST-NL-0230-B Deck Mixing Faucet
Lever Handles, No Nozzle, Rigid Outlet Connection
Spec Sheet

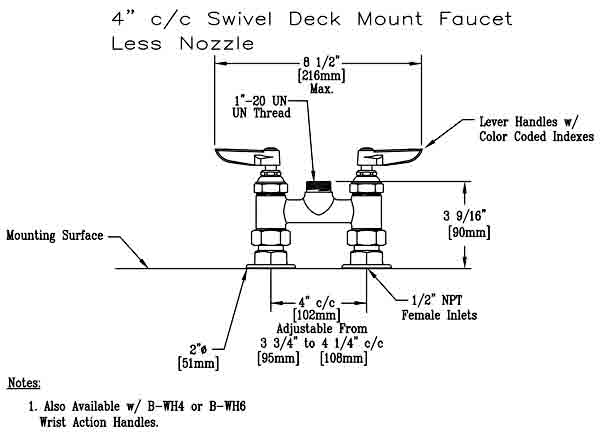

MI-ST-NL-5230-B
4" C/C Swivel Deck Mount Faucet w/o Nozzle
Spec Sheet
MI-ST-NL-0220-B
Swivel base Deck mixing faucet
Lever handles, 8" (203mm) centers
1/2" IPS eccentric flanged female inlets
Swing Nozzle MI-ST-X560-18 Length: 18" (457mm), Rise: 5-3/4" (146mm), Use Series 1 outlets
Swing Nozzle MI-ST-X950-6, Length: 6" (152mm), Rise: 2" (51mm), Use Series 1 outlets
Swing Nozzle MI-ST-X360-14, Length: 14"(356mm), Rise: 4-1/4"(108mm), Use Series 1 outlets
Swing Nozzle MI-ST-X060-8 Length: 8"(203mm), Rise: 2 1/4" (57mm), Use Series 1 outlets
Swing Nozzle MI-ST-X460-16, Length: 16" (406mm), Rise: 5" (127mm), Use Series 1 outlets
Swivel Gooseneck MI-ST-X531
Spread: 8-11/16" 221mm, Height: 11-3/4" 298mm, Dim D*: 5-1/8" 130mm
*Dim D = Distance from deck to tip of outlet), Use Series 2 outlets
Swivel Gooseneck MI-ST-X231
Spread: 2-5/8" 61mm, Height: 8-3/4" 222mm, Dim D*: 5-1/8" 130mm
*Dim D = Distance from deck to tip of outlet, Use Series 2 outlets
Swivel Gooseneck MI-ST-X131
Spread: 2-3/4" 70mm, Height: 4-3/4" 121mm, Dim D*: 2-1/8" 70mm
*Dim D = Distance from deck to tip of outlet, Use Series 1 outlets
