SEE SWAGERS: For 1/16� - 1/8�, USE E0113-0350. FOR 1/16� - 3/16�, USE E0113-0600.FOR 1/4� USE E0113-0700. USE A HYDRAULIC SWAGER ON LARGER SIZES
Malpass, Inc. has been supplying United States Naval ships and submarines and Coast Guard vessels with repair parts since 1980
Swage Sleeves
|
|

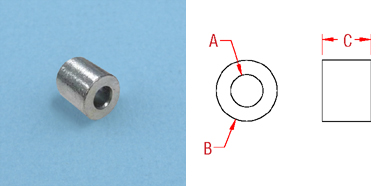

The Aluminum Stop Sleeve can fit wire sizes from 1/16" to 3/8" for every project, large or small. This swage sleeve is ideal for marine and industrial wire rope assembly applications.
SEE SWAGERS: For 1/16� - 1/8�, USE E0113-0350. FOR 1/16� - 3/16�, USE E0113-0600.FOR 1/4� USE E0113-0700. USE A HYDRAULIC SWAGER ON LARGER SIZES |
| ITEM | A (wire") (wire mm) |
B | C | HOLE # | Order | |
|---|---|---|---|---|---|---|
| MI-754-0001 | 1/16" | 1.5 mm | 0.20" | 0.22" | 1 | |
| MI-754-0002 | 3/32" | 2.5 mm | 0.33" | 0.32" | 2 | |
| MI-754-0003 | 1/8" | 3.0 mm | 0.33" | 0.33" | 3 | |
| MI-754-0004 | 5/32" | 4.0 mm | 0.42" | 0.33" | 4 | |
| MI-754-0005 | 3/16" | 5.0 mm | 0.42" | 0.32" | 5 | |
| MI-754-0006 | 7/32" | 5.5 mm | 0.43" | 0.63" | N/A | |
| MI-754-0007 | 1/4" | 6.0 mm | 0.66" | 0.71" | 1 | |
| MI-754-0009 | 5/16" | 8.0 mm | 0.66" | 0.71" | N/A | |
| MI-754-0010 | 3/8" | 9.0 mm | 0.66" | 0.71" | N/A | |
|

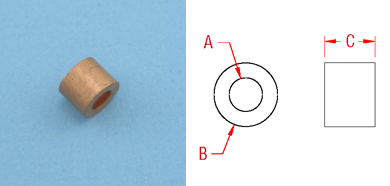

The Copper Stop Sleeve can fit wire sizes from 1/16" to 3/8" for every project, large or small. This swage sleeve is ideal for marine and industrial wire rope assembly applications.
See SWAGERS : For 1/16� - 1/8�, use E0113-0350. FOR 1/16� - 3/16�, use E0113-0600.FOR 1/4�, use E0113-0700. USE A HYDRAULIC SWAGER ON LARGER SIZES. |
| ITEM | A
(wire")(wire mm) |
B | C | HOLE # | Order | |
|---|---|---|---|---|---|---|
MI-754-0001 |
1/16" |
1.5 mm |
0.20" |
0.22" |
1 |
|
MI-754-0002 |
3/32" |
2.5 mm |
0.33" |
0.32" |
2 |
|
MI-754-0003 | 1/8" | 3.0 mm | 0.33" | 0.33" | 3 | |
MI-754-0004 | 5/32" | 4.0 mm | 0.42" | 0.33" | 4 | |
MI-754-0005 | 3/16" | 5.0 mm | 0.42" | 0.32" | 5 |
|
MI-754-0006 | 7/32" | 5.5 mm | 0.43" | 0.63" | N/A |
|
MI-754-0007 | 1/4" | 6.0 mm | 0.66" | 0.71" | 1 |
|
MI-754-0009 |
5/16" |
8.0 mm |
0.66" |
0.71" |
N/A |
|
MI-754-0010 |
3/8" |
9.0 mm |
0.66" |
0.71" |
N/A |
|

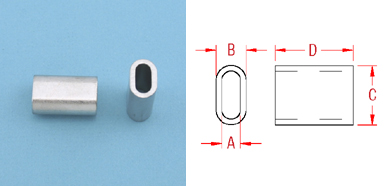

| The Stainless Steel Swage Sleeve can fit wire sizes from 1/16" to 1/4" for every project, large or small. This swage sleeve is ideal for marine and industrial wire rope assembly applications.
See Swagers: AFTER SWAGE DIAMETERS ARE PLUS 0.0� AND MINUS 0.010�. OTHER TYPES AND SIZES AVAILABLE ON SPECIAL ORDER. SWAGE TOOLS ARE SOLD ON PAGE 48. REQUIRES HYDRAULIC SWAGING |
| ITEM | A (wire) |
B | C | D | AFTER SWAGE DIAMETER | Order |
|---|---|---|---|---|---|---|
MI-750-0001 |
1/16" |
0.139" |
0.230" |
0.375" |
0.150" |
|
MI-750-0002 | 3/32" | 0.166" | 0.269" | 0.374" | 0.185" |
|
MI-750-0003 | 1/8" | 0.234" | 0.362" | 0.379" | 0.265" |
|
MI-750-0004 | 5/32" | 0.320" | 0.491" | 0.723" |
0.350" | |
MI-750-0005 |
3/16" |
0.355" |
0.564" |
0.876" | 0.395" |
|
MI-750-0006 |
7/32" |
0.432" |
0.663" |
0.885" | 0.437" |
|
MI-750-0007 |
1/4" |
0.457" |
0.720" |
1.131" | 0.530" |
|

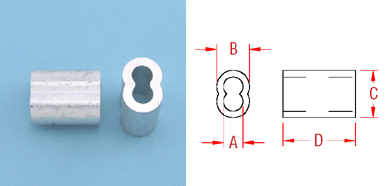

The Aluminum Swage Sleeve can fit wire sizes from 1/16" to 1/2" for every project, large or small. This swage sleeve is ideal for marine and industrial wire rope assembly applications.
SEE SWAGERS: FOR 1/16� - 1/8�, USE E0113-0350. FOR 1/16� - 3/16�, USE E0113-0600.FOR 1/4� USE E0113-0700. USE A HYDRAULIC SWAGER ON LARGER SIZES. |
| ITEM | A (wire")(wire mm) |
B | C | D | CRIMPS | HOLE # | Order | |
|---|---|---|---|---|---|---|---|---|
| MI-751-0001 | 1/16" | 1.5 mm | 0.185" | 0.258" | 0.390" | 2 | 1 | |
| MI-751-0002 | 3/32" | 2.5 mm | 0.277" | 0.403" | 0.490" | 3 | 2 | |
| MI-751-0003 | 1/8" | 3.0 mm | 0.336" | 0.493" | 0.628" | 3 | 3 | |
| MI-751-0004 | 5/32" | 4.0 mm | 0.381" | 0.574" | 0.686" | 3 | 4 | |
| MI-751-0005 | 3/16" | 5.0 mm | 0.443" | 0.666" | 1.004" | 3 | 5 | |
| MI-751-0007 | 1/4" | 6.0 mm | 0.536" | 0.816" | 1.137" | 3 | 1 | |
| MI-751-0009 | 5/16" | 8.0 mm | 0.689" | 1.034" | 1.245" | 3 | HYDRAULIC | |
| MI-751-0010 | 3/8" | 9.0 mm | 0.752" | 1.157" | 1.447" | 3 | HYDRAULIC | |
| MI-751-0013 | 1/2" | 12.0 mm | 1.054" | 1.623" | 2.000" | 3 | HYDRAULIC | |
 |

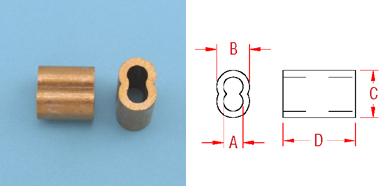

The Copper Swage Sleeve can fit wire sizes from 1/16" to 1/2" for every project, large or small. This swage sleeve is ideal for marine and industrial wire rope assembly applications.
See Swagers: swagers.htm FOR 1/16� - 1/8�, USE E0113-0350. FOR 1/16� - 3/16�, USE E0113-0600.FOR 1/4� USE E0113-0700. USE A HYDRAULIC SWAGER ON LARGER SIZES. |
| ITEM | A (wire")(wire mm) |
B | C | D | CRIMPS | HOLE # | Order | |
|---|---|---|---|---|---|---|---|---|
| MI-752-0001 | 1/16" | 1.5 mm | 0.169" | 0.250" | 0.372" | 2 | 1 | |
| MI-752-0002 | 3/32" | 2.5 mm | 0.224" | 0.370" | 0.400" | 3 | 2 | |
| MI-752-0003 | 1/8" | 3.0 mm | 0.327" | 0.492" | 0.554" | 3 | 3 | |
| MI-752-0004 | 5/32" | 4.0 mm | 0.369" | 0.592" | 0.606" | 3 | 4 | |
| MI-752-0005 | 3/16" | 5.0 mm | 0.450" | 0.672" | 0.940" | 3 | 5 | |
| MI-752-0007 | 1/4" | 6.0 mm | 0.515" | 0.809" | 1.110" | 3 | 1 | |
| MI-752-0009 | 5/16" | 8.0 mm | 0.668" | 1.020" | 1.051" | 3 | HYDRAULIC | |
| MI-752-0010 | 3/8" | 9.0 mm | 0.728" | 1.113" | 1.236" | 3 | HYDRAULIC | |
| MI-752-0013 | 1/2" | 12.0 mm | 0.955" | 1.471" | 1.892" | 3 | HYDRAULIC | |
 |

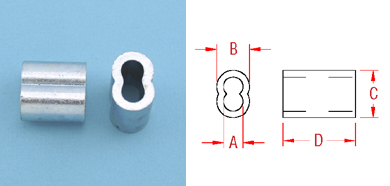

The Zinc Plated Copper Swage Sleeve can fit wire sizes from 1/16" to 1/2" for every project, large or small. This swage sleeve is ideal for marine and industrial wire rope assembly applications.
See Swagers: swagers.htm FOR 1/16� - 1/8�, USE E0113-0350. FOR 1/16� - 3/16�, USE E0113-0600.FOR 1/4� USE E0113-0700. USE A HYDRAULIC SWAGER ON LARGER SIZES. |
| ITEM | A (wire")(wire mm) | B | C | D | CRIMPS | HOLE # | Order | |
|---|---|---|---|---|---|---|---|---|
| MI-753-0001 | 1/16" | 1.5 mm | 0.169" | 0.250" | 0.372" | 2 | 1 | |
| MI-753-0002 | 3/32" | 2.5 mm | 0.224" | 0.370" | 0.400" | 3 | 2 | |
| MI-753-0003 | 1/8" | 3.0 mm | 0.327" | 0.492" | 0.554" | 3 | 3 | |
| MI-753-0004 | 5/32" | 4.0 mm | 0.369" | 0.592" | 0.606" | 3 | 4 | |
| MI-753-0005 | 3/16" | 5.0 mm | 0.450" | 0.672" | 0.940" | 3 | 5 | |
| MI-753-0006 | 7/32" | 5.5 mm | 0.460" | 0.720" | 0.860" | 3 | N/A | |
| MI-753-0007 | 1/4" | 6.0 mm | 0.515" | 0.809" | 1.110" | 3 | 1 | |
| MI-753-0009 | 5/16" | 8.0 mm | 0.668" | 1.020" | 1.051" | 3 | HYDRAULIC | |
| MI-753-0010 | 3/8" | 9.0 mm | 0.728" | 1.113" | 1.236" | 3 | HYDRAULIC | |
| MI-753-0013 | 1/2" | 12.0 mm | 0.955" | 1.471" | 1.892" | 3 | HYDRAULIC | |
Cross Wire Clamp - Surface Mount |

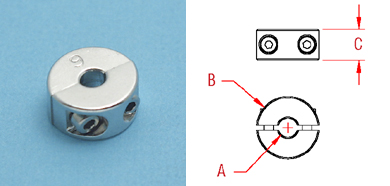

The 2 Part Wire Clamp can be used in architectural applications as a wire clamp or in shelving systems as a stop clamp. This clamp accepts wire rope sizes ranging from 1/8" to 1/4" and is made from grade 316 stainless steel for maximum corrosion resistance and durability.
Simple design offers a clean, contemporary look. Product should never be used in lifting applications |
| ITEM | A (wire) |
B | C | WT | Order |
|---|---|---|---|---|---|
| MI-720-0003 | 1/8" | 0.64" | 0.40" | 0.02 | |
| MI-720-0004 | 5/32" | 0.64" | 0.40" | 0.03 | |
| MI-720-0005 | 3/16" | 0.79" | 0.40" | 0.04 | |
| MI-720-0007 | 1/4" | 0.79" | 0.40" | 0.05 |
| The Cross Wire Clamp Surface Mount can be used in architectural applications as a trellis system or to form wire netting. This clamp can be threaded on to a surface anchor bolt. It accepts wire rope sizes from 1/8" to 3/16" and is made from grade 316 stainless steel for corrosion resistance and durability.
MAY BE USED ONLY FOR WIRE ROPE GUIDANCE PURPOSES (NOT AS AN END CONNECTOR). CAN BE USED IN ARCHITECTURAL APPLICATIONS SUCH AS TRELLIS SYSTEMS OR TO FORM WIRE NETTING. FITTING CAN BE THREADED ON TO SURFACE ANCHOR BOLT. |
| ITEM | A (wire) |
B | C | WT (lb) |
Order |
|---|---|---|---|---|---|
| MI-722-0003 | 1/8" | 0.67" | 0.75" | 0.06 | |
| MI-722-0004 | 5/32" | 0.79" | 0.83" | 0.07 | |
| MI-722-0005 | 3/16" | 0.79" | 0.91" | 0.08 |
 |

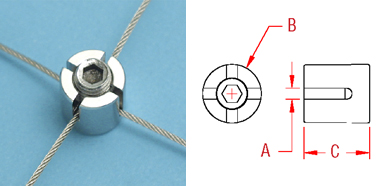

The Cross Wire Clamp Standard can be used in architectural applications as a trellis system or to form wire netting. This clamp accepts wire rope sizes ranging from 1/8" to 3/16" and is made from grade 316 stainless steel for maximum corrosion resistance and durability. MAY BE USED ONLY FOR WIRE ROPE GUIDANCE PURPOSES (NOT AS AN
END CONNECTOR). CAN BE USED IN
ARCHITECTURAL APPLICATIONS |
| ITEM | A (wire) |
B | C | WT (lb) |
Order |
|---|---|---|---|---|---|
| MI-721-0003 | 1/8" | 0.67" | 0.75" | 0.07 | |
| MI-721-0004 | 5/32" | 0.79" | 0.83" | 0.08 | |
| MI-721-0005 | 3/16" | 0.79" | 0.91" | 0.09 | |
| MI-721-0007 | 1/4" | 0.79" | 0.99" | 0.11 |
