Stainess Steel HD Wire Rope Clips
HEAVY DUTY WIRE ROPE CLIP |
The Heavy Duty Wire Rope Clip is available in sizes ranging from 1/8" to 1". This heavy duty wire clip is drop forged and made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging applications.
I/A/W FEDERAL SPECIFICATION FF-C-450D, TYPE 1. (EXCEPT 316 STAINLESS, DROP FORGED) |
ITEM | A (size) |
B | C | D | E | WT(lb) | Order |
---|---|---|---|---|---|---|---|
MI-122-0003 | 1/8" | 0.21" | 0.50" | 0.80" | 0.92" | 0.06 | |
MI-122-0005 | 3/16" | 0.24" | 0.62" | 0.95" | 1.15" | 0.10 | |
MI-122-0007 | 1/4" | 0.30" | 0.75" | 1.18" | 1.46" | 0.20 | |
MI-122-0008 | 5/16" | 0.36" | 0.78" | 1.33" | 1.66" | 0.28 | |
MI-122-0010 | 3/8" | 0.43" | 0.82" | 1.56" | 1.90" | 0.44 | |
MI-122-0013 | 1/2" | 0.48" | 1.05" | 1.90" | 2.28" | 0.71 | |
MI-122-0016 | 5/8" | 0.54" | 1.28" | 2.05" | 2.48" | 1.00 | |
MI-122-0020 | 3/4" | 0.62" | 1.50" | 2.24" | 2.83" | 1.48 | |
MI-122-0025 | 1" | 0.68" | 1.90" | 2.59" | 3.47" | 2.55 |

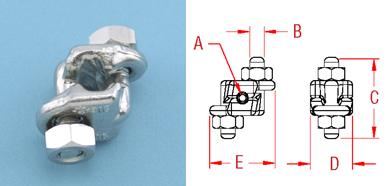

Chair Clip 316-NM STAINLESS STEEL |
The Chair Clip is available in sizes ranging from 1/4" to 3/4" to ensure a perfect fit for every project. This wire clip is drop forged and made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging applications.
I/A/W FEDERAL SPECIFICATION FF-C-450D, TYPE 3, CLASS 1. (EXCEPT 316 STAINLESS, DROP FORGED) |
ITEM | A (size) |
B | C | D | E | WT (lb) | Order |
---|---|---|---|---|---|---|---|
MI-122-C007 | 1/4" | 0.36" | 1.75" | 0.93" | 1.44" | 0.22 | |
MI-122-C008 | 5/16" | 0.38" | 2.00" | 1.07" | 1.68" | 0.31 | |
MI-122-C010 | 3/8" | 0.43" | 2.38" | 1.10" | 1.87" | 0.46 | |
MI-122-C013 | 1/2" | 0.50" | 2.70" | 1.26" | 2.13" | 0.61 | |
MI-122-C016 | 5/8" | 0.62" | 3.30" | 1.50" | 2.53" | 1.16 | |
MI-122-C020 | 3/4" | 0.75" | 3.70" | 1.75" | 3.12" | 1.88 |
