LIFTING CHAIN (S5)
GRADE: 316L STAINLESS STEEL - RATED FOR OVERHEAD LIFTING - Full Drums only

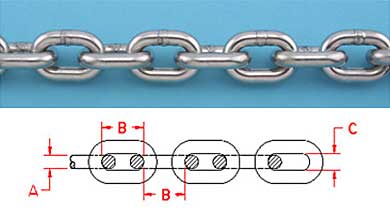

| ITEM | SIZE | A | B | C | WLL
(lb) | BL
(lb) | WT
(lb/ft) |
Chain Length |
Order |
|---|
| MI-603-0005 | 3/16" | 0.19" | 0.58" | 0.25" | 1,100 | 4,400 | 0.36 | 400 ft | |
| MI-603-0007 | 1/4" (9/32) |
0.28" | 0.85" | 0.38" | 2,200 | 8,800 | 0.67 | 400 ft | |
| MI-603-0008 | 5/16" | 0.32" | 0.95" | 0.45" | 2,700 | 10,800 | 0.98 | 275 ft |
|
| MI-603-0010 | 3/8" | 0.39" | 1.18" | 0.55" | 4,400 | 17,600 | 1.41 | 200 ft |
|
| MI-603-0013 | 1/2"
| 0.51" | 1.55" | 0.75" | 7,300 | 29,200 | 2.60 | 300 ft |
|
Calibrated grade 50 lifting chain is made in the USA to grade 80 dimensions. Never exceed working load limit (WILL). Working load limits are based on gradual pull and not shock loads. Make sure that all components in the assembly be overhead lifting rated and have the same working load limits.
|
INDUSTRIAL CHAIN
GRADE: 316L STAINLESS STEEL - Full Drums only
| ITEM | SIZE | A
| B | C | WLL
(lb) | BL
(lb) | WT
(lb/ft)
| Chain Length | |
|---|
| MI-602-0004 | 5/32" | 0.16"
| 0.77" | 0.28" | 500 | 2,000 | 0.23 | 400 ft |
|
| MI-602-0005 | 3/16" | 0.20"
| 0.95" | 0.38" | 1,200 | 4,800 | 0.30 | 400 ft |
|
| MI-602-0007 | 1/4" | 0.25" | 1.00" | 0.43" | 1,570 | 6,280 | 0.57 | 400 ft |
|
| MI-602-0008 | 5/16" | 0.32" | 0.94" | 0.46" | 2,400 | 9,600 | 0.98 | 275 ft |
|
| MI-602-0010 | 3/8" | 0.39" | 1.22" | 0.57" | 3,550 | 14,200 | 1.60 | 200 ft |
|
| MI-602-0012 | 1/2" (7/16) | 0.47" | 1.50" | 0.78" | 5,400 | 21,600 | 2.00 | 300 ft |
|
| MI-602-0016 | 5/8" | 0.63" | 1.91" | 0.90" | 9,800 | 39,200 | 3.31 | 300 ft
| |
| MI-602-0020 | 3/4" | 0.75" | 2.75" | 1.10" | 15,000 | 60,000 | 5.00 | 150 ft |
|
| MI-602-0025 | 1" | 1.00" | 3.53" | 1.61" | 23,250 | 73,000 | 9.00 | 150 ft |
|
The stainless steel industrial chain is made in the USA and is the most commonly used chain for marine applications. This chain complies fully with all requirements of the US National Association of Chain Manufacturers' specifications.
|
